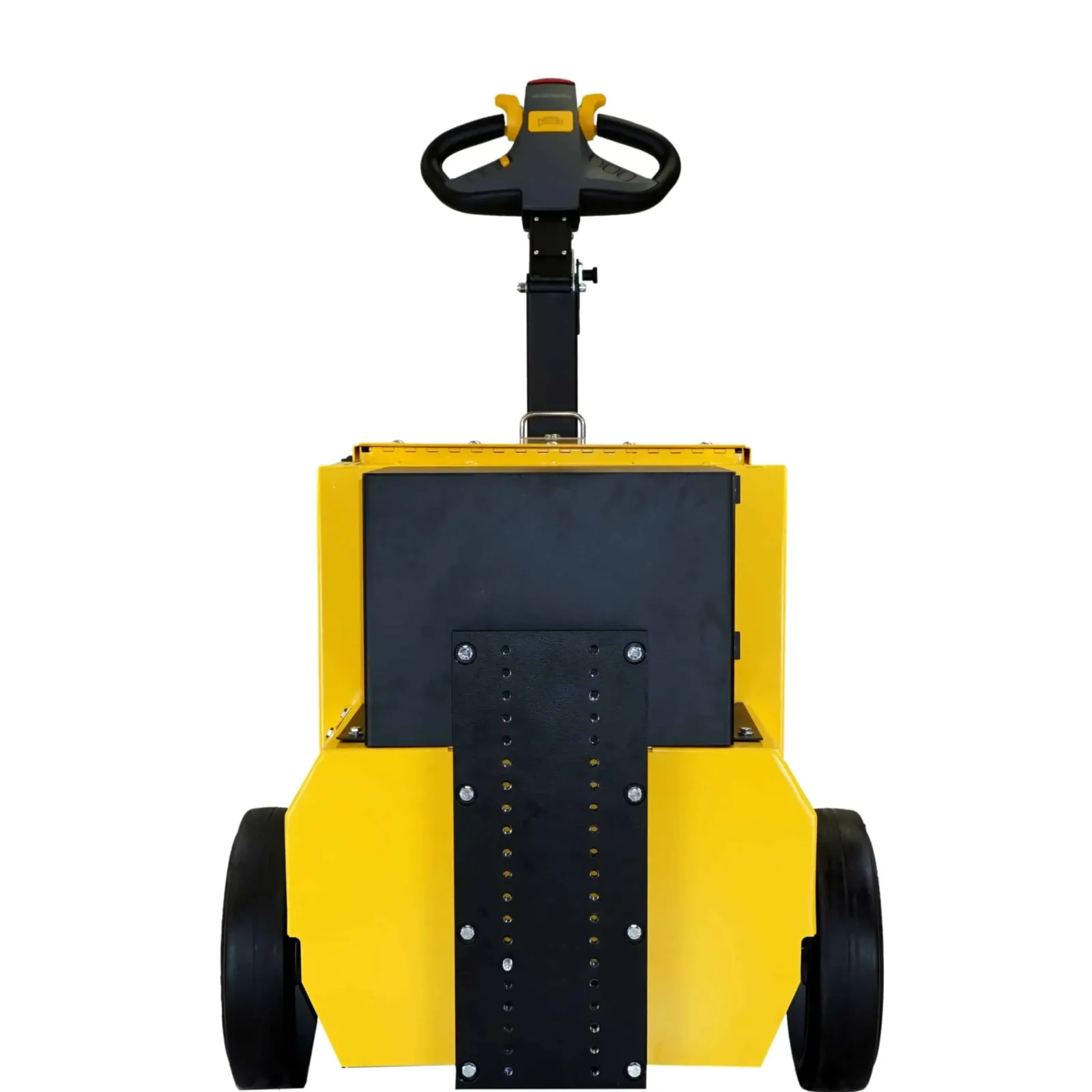

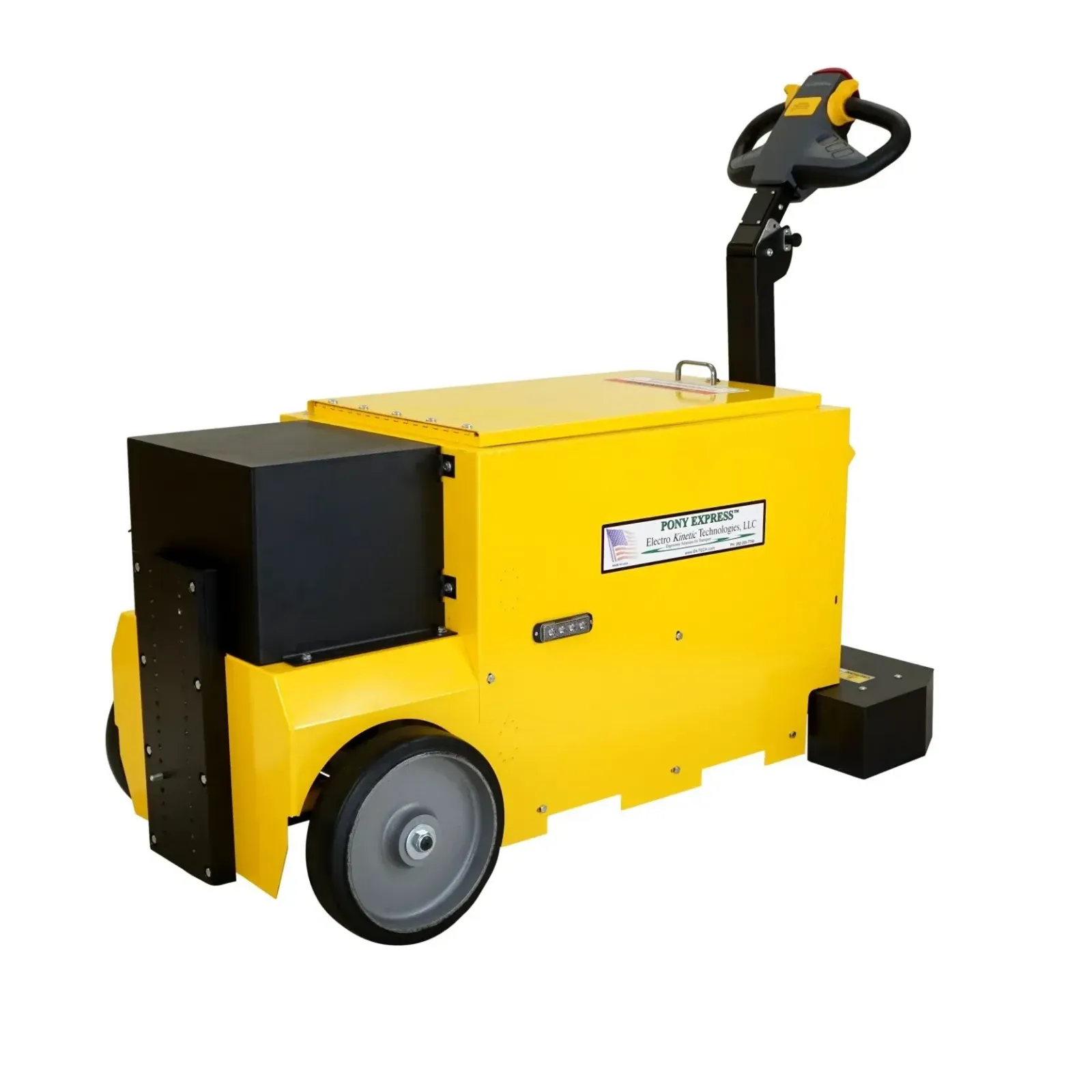

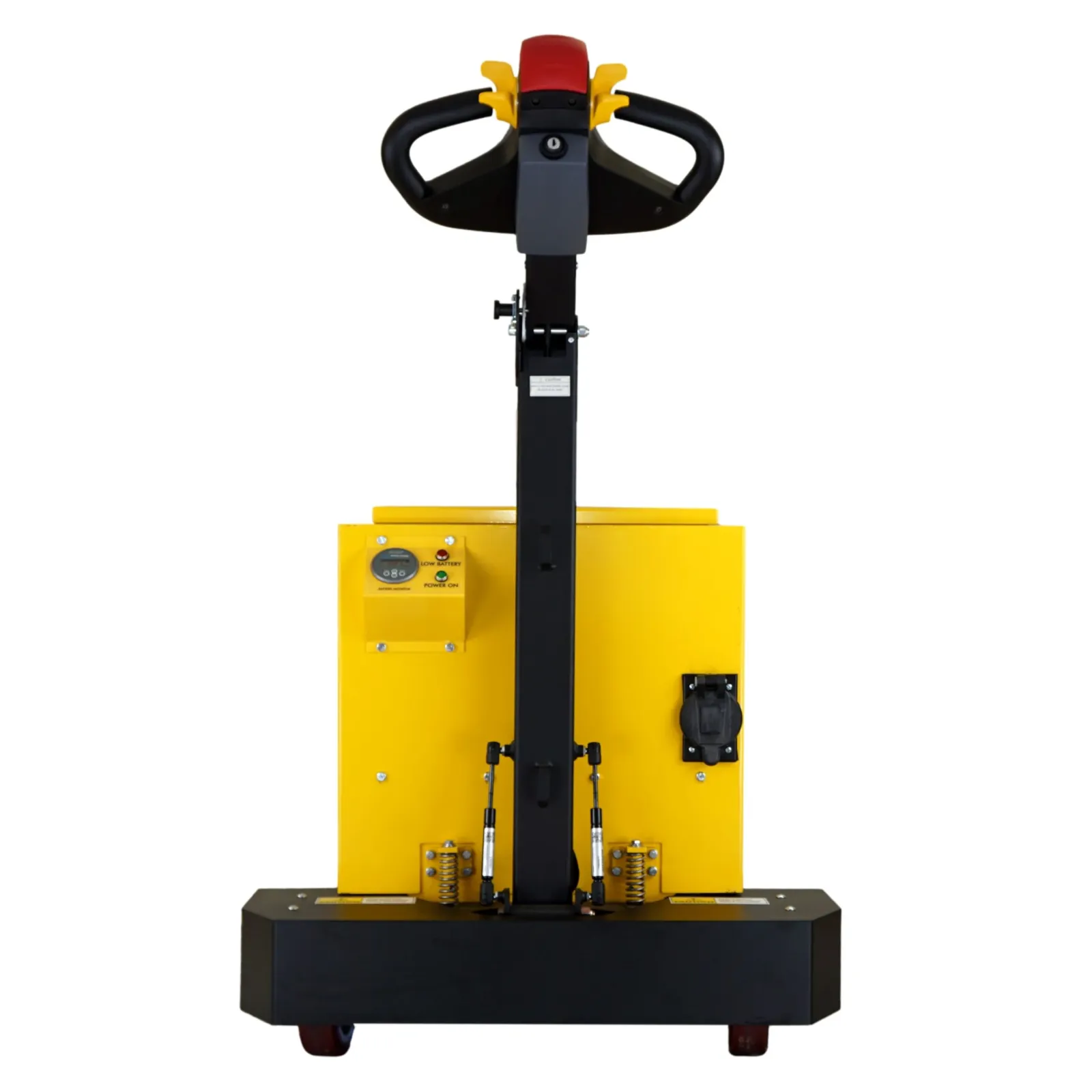

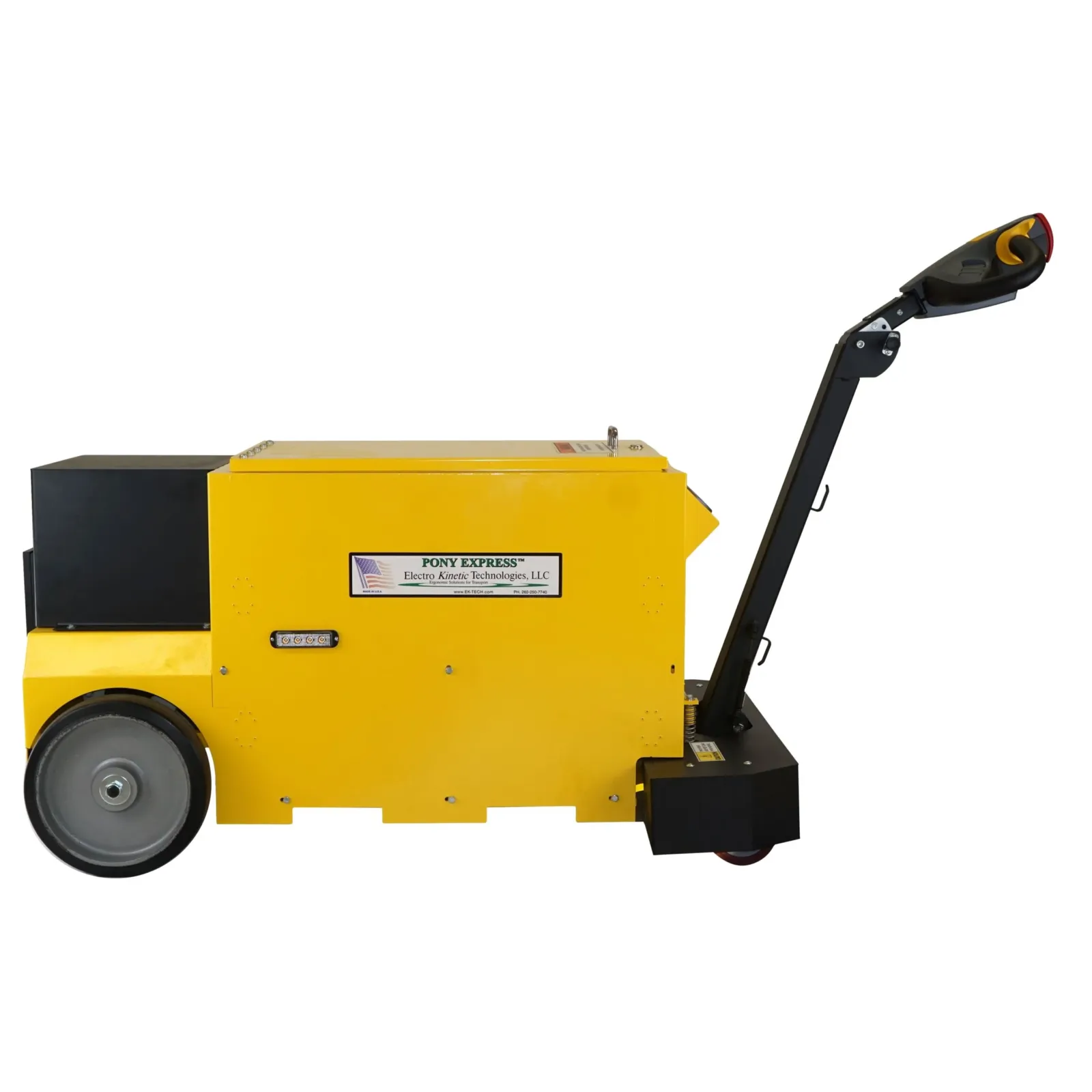

Pony Express AC Tugger 25K+

The Pony Express AC Tugger 25K+ tows up to 25,000 lb on casters and up to 100,000 lb on rails. Plants and warehouses use it for the heaviest carts, trailers and rail loads.

A 48 V AC transaxle holds its torque across the speed range. Choose a 100 Ah AGM or a 120 Ah lithium iron phosphate pack at order time. The external charger recharges in about 90 minutes, and a jog button lets one operator inch the tugger into the hitch.

Key features

• 48 V AC Vector Power transaxle, 1.7 kW, holds its torque across the whole speed range
• Recharges in about 90 minutes on the external charger

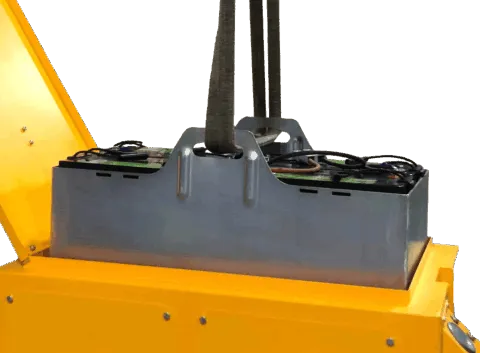

• Choice of 100 Ah AGM or 120 Ah lithium iron phosphate pack at order time
• Battery monitor gives sound and light low battery alerts plus a Bluetooth app for fleet management
• Jog button inches the tugger into the hitch so one operator can couple a heavy cart
• 12 by 3 inch molded rubber drive wheels on solid cast iron rims
• Regenerative braking and an automatic holding brake for incline safety
• Welded powder coated steel frame with a 2 year frame and motor warranty

Carts and equipment past 25,000 lb on casters are a job for the CartCaddyHD ChainDrive, rated to 50,000 lb with a hydraulic lift that puts up to 6,000 lb on the drive for traction. A ride on alternative for long routes is the RiderCaddy, rated to 10,000 lb. The swappable pack version, the AC Tugger 25K+ Lithium, is listed with the swappable pack tuggers.

Rail loads and the heaviest carts are the jobs where a tugger takes over from a forklift, and this is the model that does it.
